Reflex - 1/4", BSP/NPT, Namur Mount, 3/2 or 5/2, Internal Pilot, Single Solenoid Compatiable with all safe area solenoids. Material options: Aluminium, Stainless Steel or Brass
- Solenoid valve designed for direct mounting onto 1/4 turn pneumatically operated valve actuators meeting ‘NAMUR’ standard fixing dimensions.
- Value engineered for single operator, safe area applications.

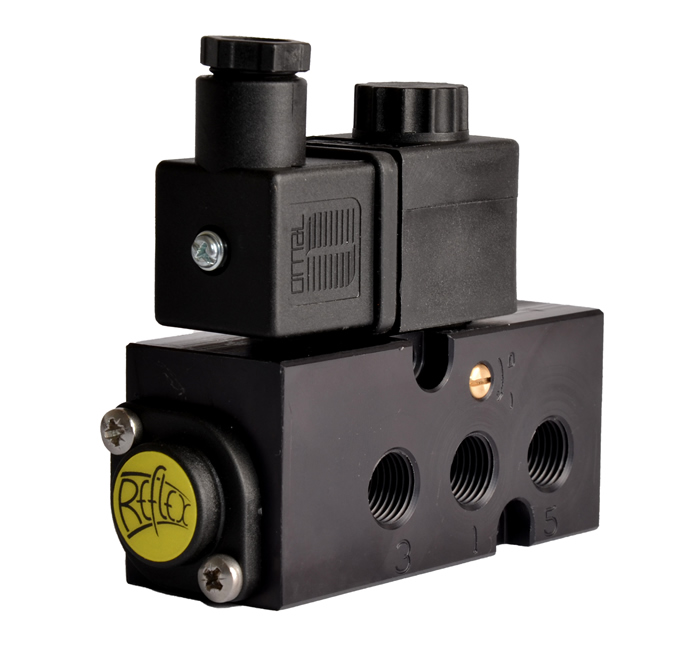

- Valve is illustrated with a safe area plug & socket coil.
- Body material – Aluminium
FEATURES
- Top face air connection
- 1/4″ BSP mains air connection and exhaust ports
- Screwdriver override as standard
- Integrated Exhaust to Spring (ETS) feature in 3/2 position
- Cv = 1.0
- Built in 3/2 to 5/2 function conversion facility for spring return and double acting actuators respectively
CONVERSION FACILITY
- The valve is fitted with a change-over plate that allows the valve to be converted from 3/2 to 5/2 function quickly and easily.
- In 3/2 function a proportion of clean air exhausting from the actuator is fed back into the spring chamber.
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body | Black Anodised Aluminium (Dural) |
| Spool | Hard Anodised Aluminium PTFE Impregnated |
| Spacers | Glass Filled Acetal |
| Seals | Nitrile |
| Spring | Music Wire |
| Mounting Screws | Stainless Steel |
| Change Over Plate | Nylon 66 30% Glass Filled |
| Gasket | Nitrile |
VALVE SPECIFICATIONS
| Standard | |
| Port Connection Size | ¼” BSP |
| Working Pressure | 3 to 10 bar |
| Cv Factor | 1.0 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 1000 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
