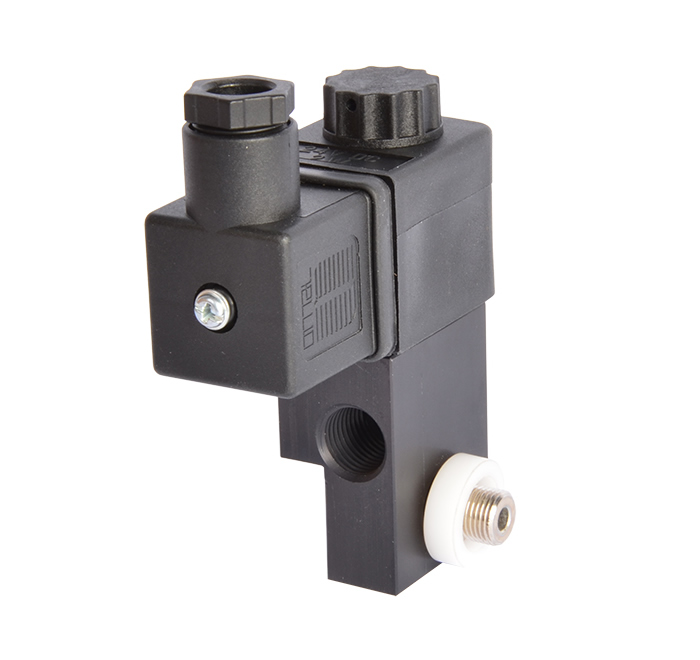

E13AXA - 1/8", BSP, Banjo Mount, 3/2, 1/4" BSP Mains Air Connection, M5 Exhaust Compatiable with all safe area solenoids. Material options: Aluminium, Stainless Steel or Brass
- 3 port 2 position direct acting, compact solenoid valve designed for direct banjo bolt mounting onto 1/4 turn pneumatically operated valve actuators having 1/8”BSP ports.
- Body material available in aluminium (standard).
FEATURES
- Convenient single 1/8″ BSP Banjo bolt connection
- Compact design to suit small actuators
- 1/4″ BSP mains air connection and M5 exhaust
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body | Black Anodised Aluminium (Dural) |
| Banjo Bolt | Brass Nickel Plated |
| Jet | Black Anodised Aluminium (Dural) |
| Seals | Nitrile & Viton |
VALVE SPECIFICATIONS
| Standard | |
| Inlet Port Connection Size | ¼” BSP |
| Outlet Port Connection Size | 1/8” BSP Banjo Bolt |
| Exhaust Port Connection Size | M5 |
| Working Pressure | 0 to 10 bar |
| Cv Factor | 0.06 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 62 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
