E13AXC Series, CNOMO Based Solenoid, Direct Mount, Interchangeable Solenoid for ease of use. Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
- Direct acting spring return normally closed solenoid, conforming to CNOMO standards.

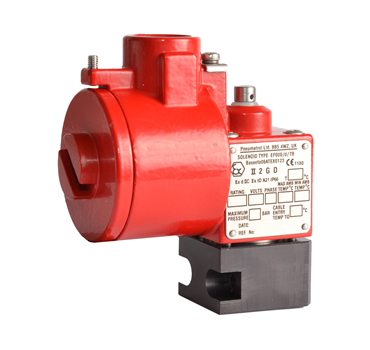

- Product is illustrated with an Exd coil.
- Body material available in aluminium (standard), Stainless Steel, and brass.
FEATURES
- Direct mounting to all valves meeting CNOMO fixing dimensions
- Interchangeable coils, including various hazardous area options
- Pilot exhaust dust caps fitted as standard
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body | Black Anodised Aluminium (Dural) |
| Jet | Brass |
VALVE SPECIFICATIONS
| Standard | |
| Working Pressure | 0 to 10 bar |
| Cv Factor | 0.06 (0.04 Intrinsically Safe Coil) |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 62 l/min 42 l/min (Intrinsically Safe Coil) |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
