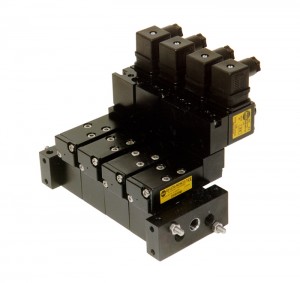

E15-V - 1/8", BSP/NPT, Mainfold Mount, 3/2, Internal or External Pilot, Upto 10 Banks Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass

E15-V Series – Manifold Mounted 3/2 Solenoid Valve

Product Overview

The E15-V Series is a manifold-mounted 3 port, 2 position pilot-operated solenoid valve designed for installation on multi-station manifolds.

The system supports both internal and external pilot air operation and can be configured with up to 10 valve banks, providing a flexible solution for complex pneumatic control requirements.

Manufacturer: ROSS Pneumatrol
Product Series: E15-V
Valve Type: 3/2 Pilot Operated Solenoid Valve
Mounting Style: Manifold Mounted
Pilot Options: Internal or External Pilot
Manifold Capacity: Up to 10 Stations

Key Features

• Compact manifold-mounted valve system
• 3/2 pilot-operated functionality
• Internal or external pilot air supply options
• Configurable manifold assemblies
• Supports up to 10 valve stations
• Suitable for multi-channel pneumatic control systems
• Designed for reliable industrial operation

Applications

The E15-V Series is suitable for:

• Pneumatic automation systems
• Multi-actuator control applications
• OEM equipment
• Process control systems
• Manufacturing automation
• Packaging equipment
• Energy and industrial installations

Product Benefits

The manifold-mounted design reduces installation space requirements and simplifies pneumatic pipework compared to individual valve installations.

By allowing multiple valves to be mounted on a common manifold, the E15-V Series helps reduce maintenance time, improve system organisation and simplify future expansion.

The choice of internal or external pilot operation provides greater flexibility when designing pneumatic systems to suit varying pressure and performance requirements.

Available Options

The E15-V Series can be configured with:

• Internal pilot operation
• External pilot operation
• Multiple valve station configurations
• Up to 10-bank manifold systems
• BSP or NPT port options
• Various AC and DC solenoid voltage options
• Safe area and hazardous area coil configurations depending on application requirements

Industries Served

• Industrial Manufacturing
• Process Industry
• Energy & Utilities
• Rail Applications
• OEM Equipment Manufacturing
• Packaging & Automation Systems

Important Notes

• Maximum manifold capacity is dependent on the selected configuration.
• Pilot pressure requirements should be verified during system design.
• Electrical and pneumatic specifications should be reviewed to ensure suitability for the intended application.
• Product configuration and available options may vary depending on application requirements.
