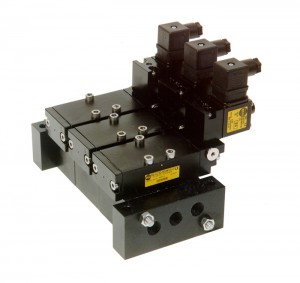

E25-V - 1/4", BSP/NPT, Mainfold Mount, 5/2, Internal or External Pilot, Upto 10 Banks Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass

E25-V Series – Manifold Mounted 5/2 Solenoid Valve

Product Overview

The E25-V Series is a manifold-mounted 5 port, 2 position pilot-operated solenoid valve designed for use in multi-station pneumatic control systems.

The valve can be configured for internal or external pilot operation and is available on manifold assemblies supporting up to 10 valve stations, allowing multiple pneumatic functions to be controlled from a single compact installation.

Manufacturer: ROSS Pneumatrol
Product Series: E25-V
Valve Type: 5/2 Pilot Operated Solenoid Valve
Mounting Style: Manifold Mounted
Pilot Options: Internal or External Pilot
Manifold Capacity: Up to 10 Stations

Key Features

• Manifold-mounted configuration for compact installations
• 5/2 pilot-operated valve functionality
• Internal or external pilot air operation
• Supports manifold assemblies up to 10 stations
• Designed for double-acting actuator control
• Simplifies pneumatic system installation and maintenance
• Reliable operation in demanding industrial environments

Applications

The E25-V Series is suitable for:

• Pneumatic automation systems
• Double-acting actuator control
• Industrial machinery
• Process automation
• Packaging equipment
• OEM systems
• Rail and energy sector applications

Product Benefits

The manifold-mounted design reduces installation complexity by combining multiple valves into a single assembly, helping minimise pneumatic connections and system footprint.

The 5/2 valve functionality makes the E25-V Series ideal for controlling double-acting cylinders and actuators, providing efficient directional control within automated systems.

The availability of both internal and external pilot options allows engineers to optimise valve performance based on specific system pressure and application requirements.

Available Options

The E25-V Series can be configured with:

• Internal pilot operation
• External pilot operation
• BSP or NPT port options
• Multiple manifold configurations
• Up to 10 valve stations
• Single or multiple valve assemblies
• Various AC and DC voltage options
• Safe area and hazardous area approved coil options

Industries Served

• Industrial Manufacturing
• Process Industry
• Oil & Gas
• Chemical Processing
• Energy & Utilities
• Rail Infrastructure
• Automation & Control Systems

Important Notes

• Maximum manifold capacity depends on the selected configuration.
• Pilot pressure requirements should be verified during system design.
• Electrical ratings, approvals and coil options vary depending on the selected configuration.
• Product specifications should be reviewed to ensure suitability for the intended application.
