C15 - 1/4", BSP/NPT, Namur Mount, 3/2 or 5/2, Internal or External Pilot, Single or Dual Solenoid Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass

  • Solenoid valve designed for direct mounting onto 1/4 turn pneumatically operated valve actuators meeting ‘NAMUR’ standard fixing dimensions.

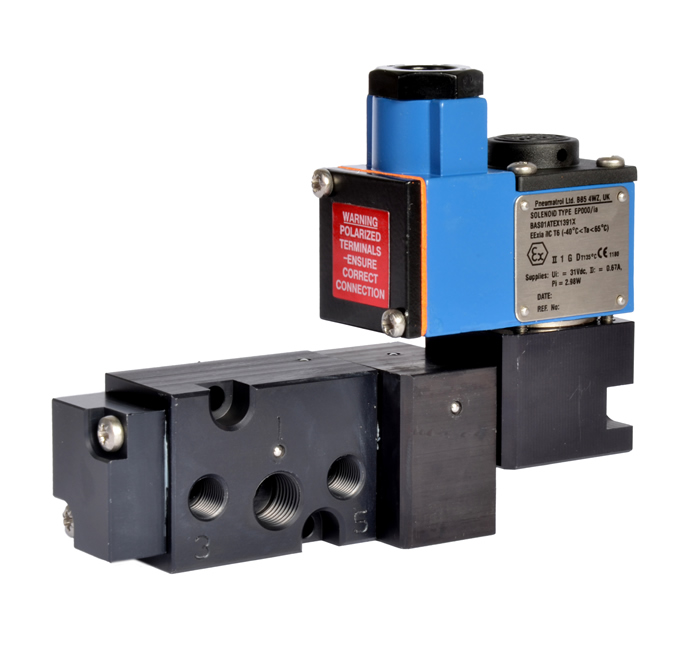

  • Valve is illustrated with an Exia coil.
  • Body material available in Aluminium (standard), Stainless Steel, and Brass
  • Seal kit available – VSKC15P


  • Interchangeable CNOMO interface coil units, including various hazardous area options
  • Integrated Exhaust to Sprint (ETS) feature in 3/2 position
  • Top face air connection
  • 1/4″ BSP mains air connection and 1/8″ BSP exhaust ports, also available in NPT ports
  • Single coil spring return function or double coil stay put function
  • Pilot exhaust dust caps fitted as standard
  • Built in 3/2 to 5/2 function conversion facility for spring return and double acting actuators respectively
  • SIL 2 Capable (De-energise to trip @ HFT=0) SIL 3 Capable (De-energise to trip @ HFT=1) when used in 3/2 mode



Body and End CapsBlack Anodised Aluminium (Dural)
SpoolHard Anodised Aluminium PTFE Impregnated
SpacersGlass Filled Acetal
SealsNitrile (Alternative Seals Available)
SpringMusic Wire
Mounting ScrewsStainless Steel
Change Over PlateNylon 66 30% Glass Filled



Inlet Port Connection Size¼” BSP
Exhaust Port Connection Size1/8” BSP
Working Pressure3 to 10 bar
Cv Factor0.7
Flow Rate (at 6 bar with 1 bar pressure drop)675 l/min
Maximum Ambient Temperature+80°C
Minimum Working Temperature-20°C
