T23 - 1/4", BSP/NPT, Namur Mount, 3/2, Integral Speed control, Internal or External Pilot, Single Solenoid Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
- Pilot valve designed for direct mounting onto 1/4 turn pneumatically operated valve actuators meeting ‘NAMUR’ standard fixing dimensions.
- Adjustable speed control (exhaust only).

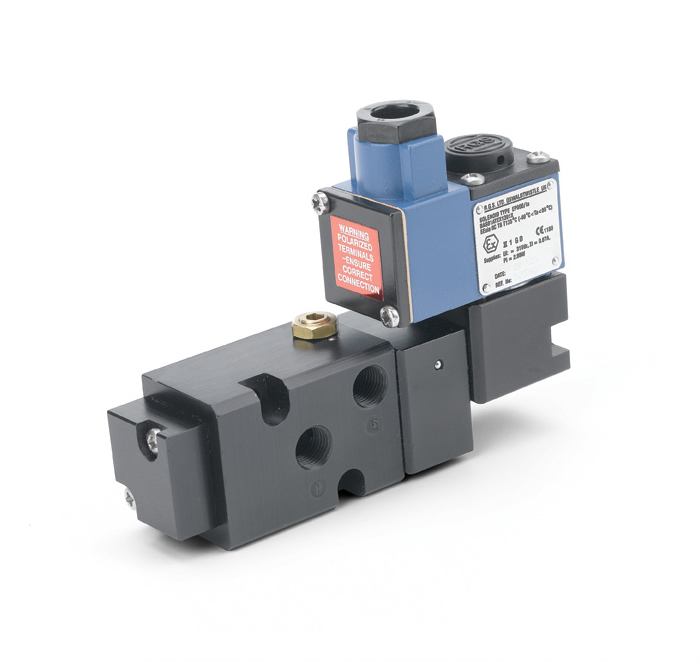

- Valve is illustrated with an Exia coil.
- Body material available in Aluminium (standard), Stainless Steel, and Brass.
- Seal kit available – VSKT25P
FEATURES
- Unique feature of Integrated Exhaust to Spring (ETS) in 3/2 position with combined Integral exhaust Speed Control (screw adjusted on top face)
- Top face air connection
- 1/4″ BSP mains air connection, also available in NPT ports
- Single pilot spring return function
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body and End Caps | Black Anodised Aluminium (Dural) |
| Spool | Hard Anodised Aluminium PTFE Impregnated |
| Spacers | Glass Filled Acetal |
| Seals | Nitrile |
| Spring | Music Wire |
| Mounting Screws | Stainless Steel |
| Change Over Plate | Nylon 66 30% Glass Filled |
| Gasket | Nitrile |
VALVE SPECIFICATIONS
| Standard | |
| Port Connection Size | 1/4” BSP |
| Pilot Port Connection Size | 1/8” BSP |
| Working Pressure | 3 to 10 bar |
| Pilot Signal Pressure | 3 to 10 bar |
| Cv Factor | 1.2 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 1246 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
T23 - 1/4", BSP/NPT, Namur Mount, 3/2, Integral Speed control, Internal or External Pilot, Single Solenoid
