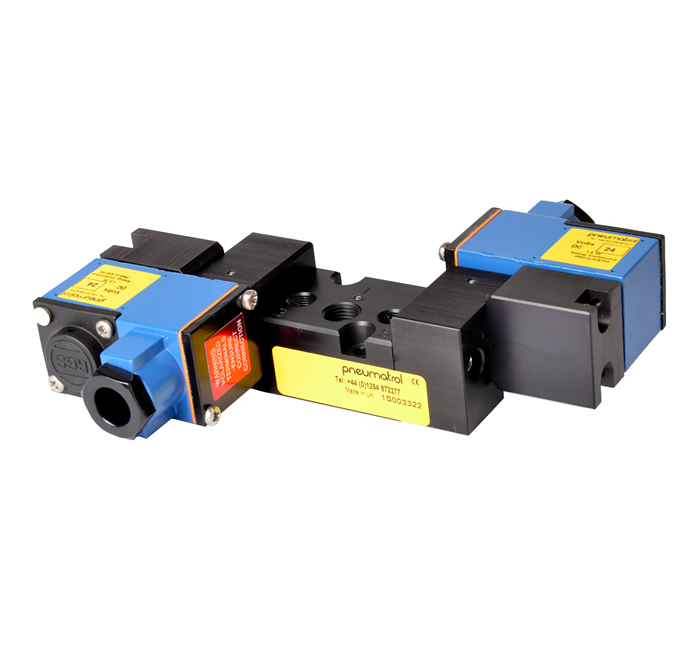

T25 - 1/4", BSP/NPT, Namur Mount, 3/2, 5/2 or 5/3, Internal or External Pilot, Single or Dual Solenoid Compatible with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass

T25 Series – NAMUR Mounted 3/2, 5/2 & 5/3 Solenoid Valve

Product Overview

The T25 Series is a pilot-operated pneumatic solenoid valve designed for direct mounting onto pneumatic rotary actuators using standard NAMUR mounting dimensions.

The valve is available in 3/2, 5/2 and 5/3 configurations, providing flexibility for spring-return and double-acting actuator applications. Internal and external pilot options are available, alongside single solenoid spring-return and dual solenoid stay-put configurations.

Manufacturer: ROSS Pneumatrol
Product Series: T25
Valve Type: NAMUR Mounted Pilot Operated Solenoid Valve
Valve Functions: 3/2, 5/2 or 5/3
Pilot Options: Internal or External Pilot
Actuation Options: Single Solenoid or Dual Solenoid

Key Features

• Direct NAMUR mounting for quarter-turn pneumatic actuators
• Available in 3/2, 5/2 and 5/3 valve functions
• Internal or external pilot operation
• Single or dual solenoid configurations
• Suitable for spring-return and double-acting actuators
• Compact and robust industrial design
• Simplified installation and maintenance
• Compatible with safe area and hazardous area solenoid operators

Applications

The T25 Series is suitable for:

• Automated valve control systems
• Ball valve automation
• Butterfly valve automation
• Process automation systems
• Oil and gas facilities
• Chemical processing plants
• Water and wastewater treatment
• Energy and utility installations
• Industrial manufacturing processes

Product Benefits

The NAMUR mounting arrangement enables direct installation onto pneumatic actuators, reducing installation time and eliminating unnecessary pneumatic pipework.

The availability of 3/2, 5/2 and 5/3 valve functions provides engineers with increased flexibility for complex control requirements, including centre-closed and centre-open pneumatic control strategies.

Internal and external pilot options allow the valve to be optimised for various operating pressures and application requirements, while single and dual solenoid configurations provide additional flexibility for fail-safe and position-holding applications.

Available Options

The T25 Series can be configured with:

• 3/2 valve operation
• 5/2 valve operation
• 5/3 valve operation
• Internal pilot operation
• External pilot operation
• Single solenoid spring-return
• Dual solenoid stay-put configuration
• BSP or NPT port connections
• Safe area solenoid coils
• Hazardous area approved coil options
• Multiple AC and DC voltage selections

Industries Served

• Oil & Gas
• Chemical Processing
• Process Industry
• Water & Wastewater
• Energy & Utilities
• Rail Infrastructure
• Industrial Manufacturing
• Automation & Control Systems

Important Notes

• Suitable for direct mounting onto NAMUR-compliant pneumatic actuators.
• Valve function should be selected to suit actuator type and required control strategy.
• Hazardous area approvals vary depending on the selected solenoid operator.
• Electrical, pneumatic and environmental specifications should be reviewed before installation.
• Product options may vary depending on application requirements.
