E13A-0 - 1/8", BSP/NPT, Direct Acting, 3/2, Single Air Inlet, Normally Open or Normally Closed, Single Solenoid Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
- 3 port 2 position direct acting, spring return solenoid valve, available in normally closed or normally open configuration.

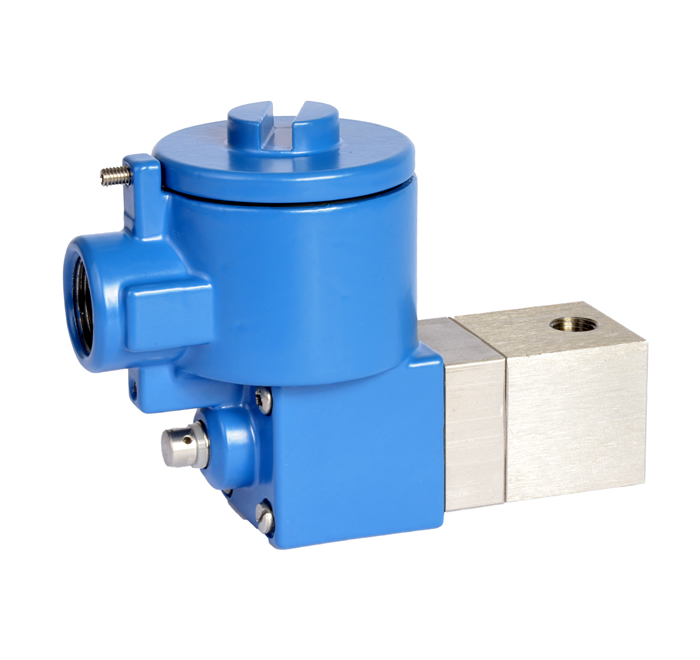

- Stainless steel valve is illustrated with an Exia coil in stainless steel housing.
- Body material available in aluminium (standard), Stainless Steel, and brass.
FEATURES
- Individual or direct relay mounting
- Interchangeable coils, including various hazardous area options
- Pilot exhaust dust caps fitted as standard
- Also available with 1/4” ports
- SIL2 on energising, SIL3 on de-energising when used in 3/2 mode
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body | Black Anodised Aluminium (Dural) |
| Jet | Brass |
| Seals | Nitrile |
VALVE SPECIFICATIONS
| Standard | |
| Port Connection Size (Standard) | 1/8” BSP |
| Working Pressure | 0 to 10 bar |
| Cv Factor | 0.4 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 62 l/min 42 l/min for intrinsically safe coil |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
