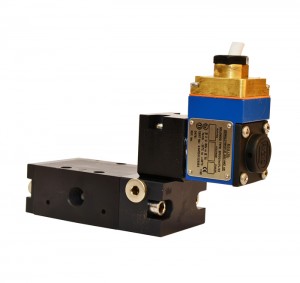

E23 Series – Remote Mounted 3/2 Solenoid Valve
Product Overview
The E23 Series is a 3 port, 2 position pilot-operated pneumatic solenoid valve designed for remote mounting applications. The valve can be configured with either internal or external pilot operation and is available with single solenoid spring-return or dual solenoid stay-put functionality.
Its rugged design and flexible configuration options make it suitable for a broad range of pneumatic control and automation systems.
Manufacturer: ROSS Pneumatrol
Product Series: E23
Valve Type: 3/2 Pilot Operated Solenoid Valve
Mounting Style: Remote Mounted
Pilot Options: Internal or External Pilot
Actuation Options: Single Solenoid or Dual Solenoid
Key Features
- Remote-mounted valve configuration
- 3/2 pilot-operated functionality
- Internal or external pilot operation
- Single solenoid spring-return option
- Dual solenoid stay-put option
- Compact and durable industrial design
- Compatible with safe area and hazardous area solenoid operators
- Designed for reliable pneumatic control in demanding applications
Applications
The E23 Series is suitable for:
- Pneumatic actuator control
- Process automation systems
- Industrial machinery
- Packaging equipment
- Chemical processing plants
- Oil and gas facilities
- Power generation systems
- Rail and transport applications
Product Benefits
The remote mounting design provides greater installation flexibility by allowing the valve to be positioned independently of the equipment it controls. This simplifies maintenance access and enables more efficient pneumatic system layouts.
The choice of internal or external pilot operation allows engineers to optimise performance for different operating pressures and system designs, while single and dual solenoid configurations provide flexibility for fail-safe and position-retention applications.
The E23 Series can also be paired with a wide range of hazardous area approved operators, making it suitable for both standard industrial and hazardous environment installations.
Available Options
The E23 Series can be configured with:
- Internal pilot operation
- External pilot operation
- Single solenoid spring-return actuation
- Dual solenoid stay-put actuation
- BSP or NPT port connections
- Aluminium body construction
- Brass body construction
- Stainless steel body construction
- Safe area solenoid operators
- Hazardous area approved operators
- Multiple AC and DC voltage options
Industries Served
- Oil & Gas
- Chemical Processing
- Process Industry
- Energy & Utilities
- Rail Infrastructure
- Industrial Manufacturing
- Automation & Control Systems
- OEM Equipment Manufacturing
Important Notes
- Pilot pressure requirements should be confirmed during system design.
- Valve configuration should be selected according to actuator type and application requirements.
- Hazardous area approvals depend on the selected solenoid operator configuration.
- Electrical and pneumatic specifications should be reviewed before installation.
- Product options vary depending on body material and coil selection.
