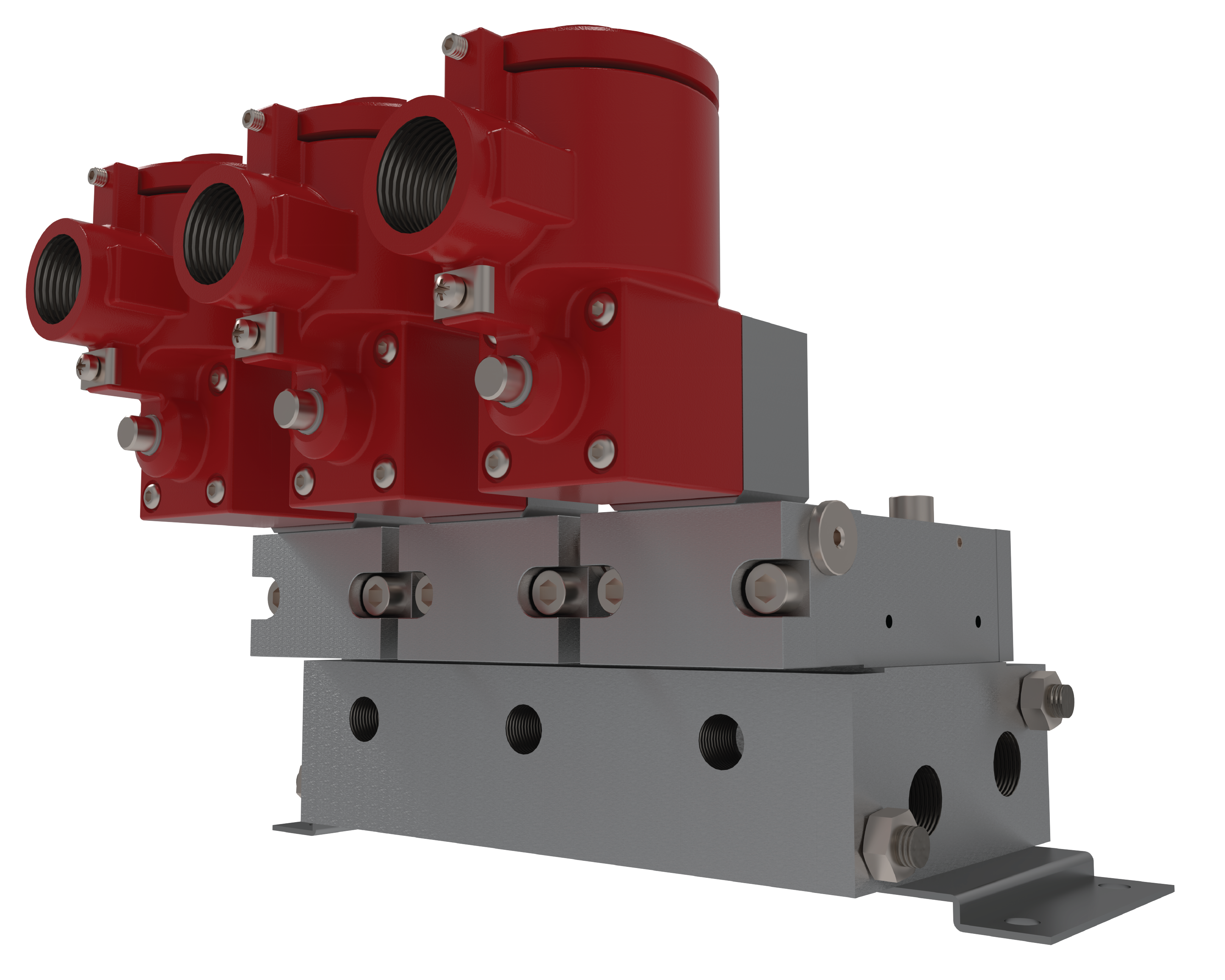

E23-G - 1/4", BSP/NPT, Gang Mount Direct Acting, 3/2, Single Air Inlet, Normally Open or Normally Closed, Single Solenoid Compatiable with all safe area solenoids. Material options: Aluminium, Stainless Steel or Brass
- Gang Mounted, 3 port 2 position direct acting available in normally closed or normally
open configuration solenoid valves, for the operation of single acting pneumatic devices. - Body material available in aluminium (standard), Stainless Steel, and brass.
FEATURES
- Single air inlet connection port
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body and End Caps | Black Anodised Aluminium (Dural) |
| Jet | Brass |
| Tie Rods & Nuts | Stainless Steel |
| End Blocks | Black Anodised Aluminium (Dural) |
VALVE SPECIFICATIONS
| Standard | |
| Port Connection Size | 1/4” BSP |
| Working Pressure | 0 to 10 bar |
| Cv Factor | 0.18 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 187 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
| Inlet Orifice Size | 2.0mm |
| Exhaust Orifice Size | 2.5mm |
+
E23-G - 1/4", BSP/NPT, Gang Mount Direct Acting, 3/2, Single Air Inlet, Normally Open or Normally Closed, Single Solenoid
