E83 - 1", BSP/NPT, Remote Mount, 3/2, Internal or External Pilot, Single or Dual Solenoid Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
- 3 port 2 position, pilot operated solenoid valve.

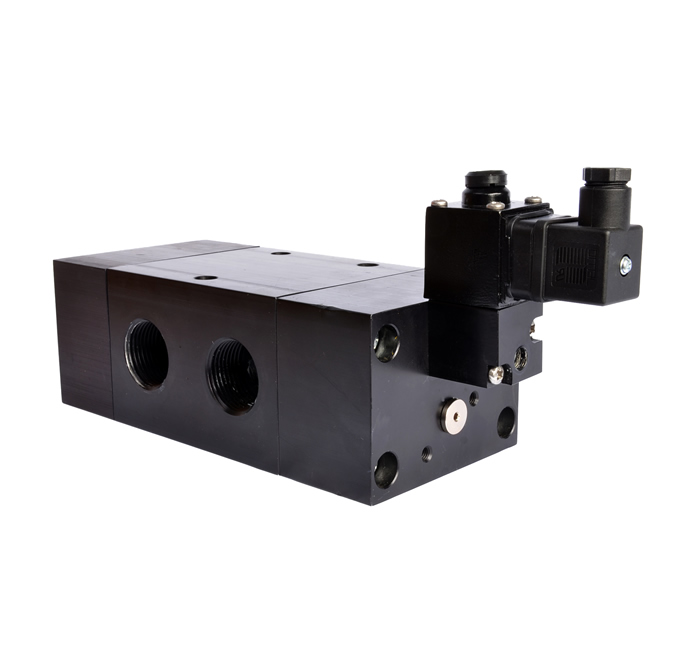

- Valve is illustrated with a safe area plug & socket coil.
- Body material available in aluminium (standard), Stainless Steel, and brass.
- Seal kit available – VSK1001
FEATURES
- Internal or external pilot air connection
- Interchangeable coils, including various hazardous area options
- Single coil spring return function or double coil stay put function
- Convenient fixing holes to enable bracket mounting
- SIL 2 Capable (De-energise to trip @ HFT=0) SIL 3 Capable (De-energise to trip @ HFT=1)
MATERIAL SPECIFICATIONS
STANDARD | |
Body and End Caps | Black Anodised Aluminium (Dural) |
Spool | Hard Anodised Aluminium PTFE Impregnated |
Jet | Brass |
Spacers | Glass Filled Acetal |
Seals | Nitrile |
Spring | Music Wire |
VALVE SPECIFICATIONS
Standard | |
Port Connection Size | 1” BSP |
Working Pressure Internal Pilot Version | 3 to 10 bar |
Working Pressure External Pilot Version | 3 to 10 bar |
Minimum External Pilot Pressure | 3 bar |
Cv Factor | 10 |
Flow Rate (at 6 bar with 1 bar pressure drop) | 10384 l/min |
Maximum Ambient Temperature | +80°C |
Minimum Working Temperature | -20°C |
