V23 - 1/4", BSP/NPT, Poppet Valve, 3/2, Internal or External Pilot, Single Solenoid Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
- 3 port 2 position, spring return Poppet solenoid valve.

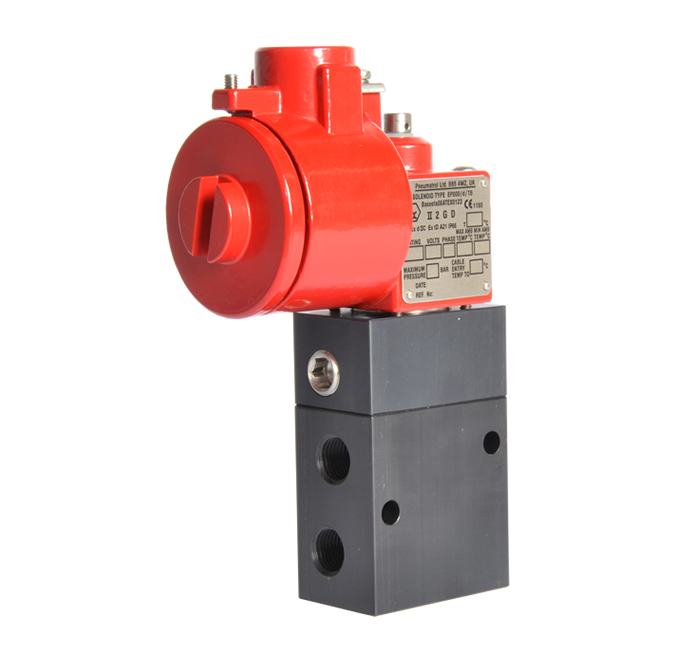

- Valve is illustrated with an Exd coil.
- Body material available in aluminium (standard), Stainless Steel, and brass.
- Seal kit available – VSK126
FEATURES
- Internal or external pilot air connection
- Interchangeable coils, including various hazardous area options
- Pilot exhaust dust caps fitted as standard
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body and End Caps | Black Anodised Aluminium (Dural) |
| Poppet Insert | Brass |
| Jet | Brass |
| Seals | Nitrile |
VALVE SPECIFICATIONS
| Standard | |
| Port Connection Size | 1/4” BSP |
| Working Pressure Internal Pilot Version | 3 to 10 bar |
| Working Pressure External Pilot Version | 3 to 10 bar |
| Minimum External Pilot Pressure | 3 bar |
| Cv Factor | 1.2 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 1246 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
