E25-T - 1/4", BSP/NPT, Mainfold Mount, 5/2, Internal or External Pilot, Single or Dual Solenoid Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
Datasheet
- 5 port 2 position, sub base mount solenoid valve.

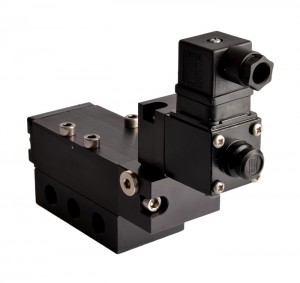

- Valve is illustrated with safe area plug & socket coils.
- Body material available in aluminium (standard), Stainless Steel, and brass.
- Seal kit available – VSK200
FEATURES
- Internal or external pilot air connection
- Single coil spring return function or double coil stay put function
- Various manual override options
- Optional bracket mounting
- 1/4″ BSP inlet and exhaust connections
- Interchangeable CNOMO interface coil units, including hazardous area options
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body and End Caps | Black Anodised Aluminium (Dural) |
| Sub-Base | Black Anodised Aluminium (Dural) |
| Bracket | Mild Steel (Nickel Plated) |
| Spool | Hard Anodised Aluminium PTFE Impregnated |
| Jet | Brass |
| Spacers | Glass Filled Acetal |
| Seals | Nitrile |
| Spring | Music Wire |
| Mounting Screws | Stainless Steel |
VALVE SPECIFICATIONS
| Standard | |
| Port Connection Size | 1/4” BSP |
| Working Pressure Internal Pilot Version | 3 to 10 bar |
| Working Pressure External Pilot Version | 3 to 10 bar |
| Minimum External Pilot Pressure | 3 bar |
| Cv Factor | 1.2 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 1246 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
