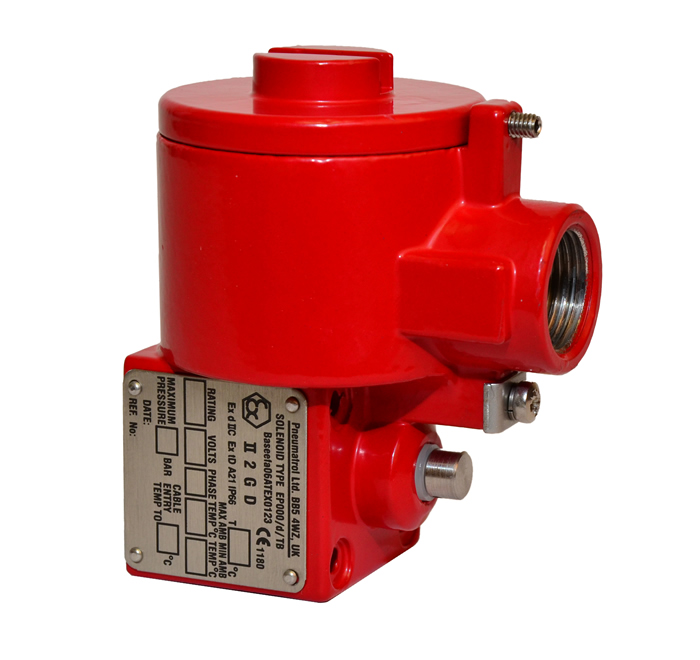

Cat 2 GD: Ex db IIC T6: IP66 Stainless Steel Housed Terminal Box ATEX Cat 2 compatiable for hazardous areas. CNOMO interface available in various materials.
Datasheet
- Flameproof coil suitable for Zones 1 and 2, manufactured in accordance with the requirements of the European harmonised standards EN/IEC60079-0, EN/IEC60079-1 and EN/IEC60079-31.
- Covered by Certificates CML 15ATEX1119X & IECEx CML 17.0147X.
FEATURES
- M20 x 1.5 conduit entry or 1/2″ NPT
- Protection class IP66 according to ENBS60529
- Connection by 2-pole 2.5mm2 terminal strip + earth
- Continuously rated
- Maximum permitted voltage variation ±10%
- Internal and external earthing connection screw
- Low power consumption
- Wide range of voltages available
- Approvals available – ATEX, IECEx & CCCEx.
MATERIAL SPECIFICATIONS
| STANDARD | |
| Coil Case | Stainless Steel Epoxy Powder Coated |
| Armature and Fixed Pole Piece | Magnetic Solenoid Quality Stainless Steel |
| Springs | Stainless Steel |
| Seals and Seats | Viton |
| Coil Former | 30% Glass Filled PBR |
| Magnetic Wire | Class H Coated Copper |
| Guide Tube | Stainless Steel |
SOLENOID SPECIFICATIONS
| DC Solenoid Coil | AC Solenoid | |
| Voltage Standard | 24 | 24, 110, 240 (50/60 Hz) |
| Voltage Tolerance | ±10% | ±10% |
| Ambient Temperature | -60 to +80°C | -60 to +55°C |
| Duty Cycle | 100% | 100% |
| Degree of Protection | IP66 | IP66 |
| Electrical Connection | Junction Box with M20 or ½” NPT Conduit Entry | Junction Box with M20 or ½” NPT Conduit Entry |
| Power Consumption | 3W or 1.3W | Pull in – 10VA, Holding – 5VA |
| Pressure Range | 0 – 10 bar | 0 – 10 bar |
Cat 2 GD: Ex db IIC T6 Solenoid Valves
Overview
Our Cat 2 GD: Ex db IIC T6 solenoid valves are engineered for use in hazardous environments where explosive gases or dusts may be present. Certified under ATEX, IECEx, and CCCEx standards, these valves are designed to deliver safe, reliable, and efficient control in demanding industrial applications.
Key Features
- Explosion-Proof Design: Certified to Ex db IIC T6 for gas and Ex tb IIIC T85°C Db IP66 for dust, ensuring compliance with EN/IEC 60079-0, 60079-1, and 60079-31 standards
- Ingress Protection: Rated IP66/IP67, offering robust protection against water and dust ingress
- Material Options: Available in 316L stainless steel or black anodised aluminium for corrosion resistance and durability
- Electrical Entry: Standard M20 x 1.5 or ½" NPT conduit entries for flexible installation
- Voltage Options: AC (24V, 110V, 240V) and DC (24V) coils with low power consumption (as low as 1.3W DC or 5VA AC holding)
- Temperature Range: Operates in ambient temperatures from -60°C to +80°C (DC) and up to +55°C (AC)
- Duty Cycle: 100% continuous operation for dependable performance
Applications
These solenoid valves are ideal for:
- Oil & Gas installations
- Chemical processing plants
- Pharmaceutical manufacturing
- Mining and offshore platforms
- Any Zone 1 or Zone 2 classified area
Certifications
- ATEX (Directive 2014/34/EU)
- IECEx
- CCCEx
- ECAS-Ex (for UAE-specific applications)
Cat 2 GD: Ex db IIC T6: IP66 Stainless Steel Housed Terminal Box
