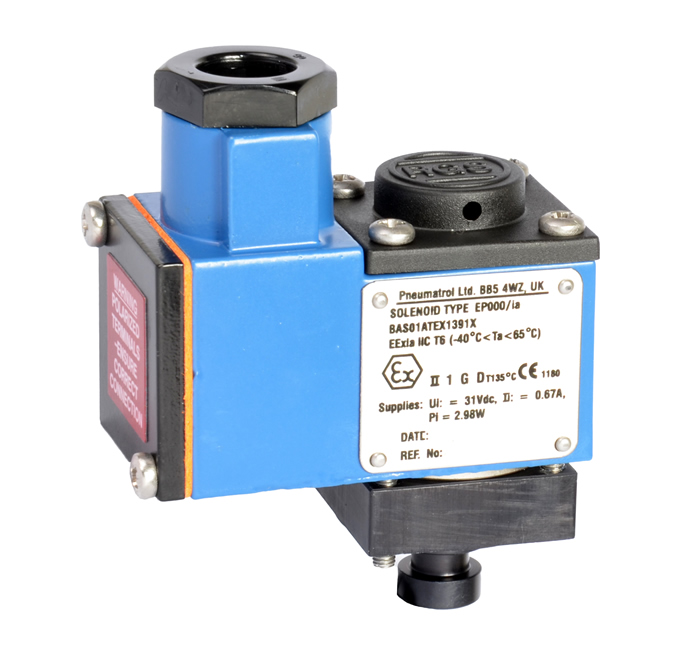

Cat 1 GD: Exia IIC T6: IP65 Mazak Housed Terminal Box ATEX Cat 1 compatiable for hazardous areas. CNOMO interface available in various materials.

Actual product may differ from above image. Product details should be verified before purchase.
  • Intrinsically safe coil assembly suitable for Zones 0, 1 and 2, manufactured in accordance with the requirements of the European harmonised standards EN/IEC60079-0 and EN/IEC60079-11.
  • Covered by Certificates CML17ATEX2046X & IECEx CML17.0030X.

FEATURES

  • M20 x 1.5 conduit entry (Cable diameter 6 – 8mm) or 1/2 NPT
  • Connection by 2-pole 2.5mm Terminal Block
  • Protection class IP65 according to EN 60529
  • Continuously rated
  • Maximum permitted voltage variation ±10%
  • Maximum Ambient Temperature +65°C
  • Low power consumption
  • Operates with a wide range of barriers and galvanic isolators



MATERIAL SPECIFICATIONS

 STANDARD
Coil CaseZinc Alloy Epoxy Powder Coated
Armature and Fixed Pole PieceMagnetic Stainless Steel
SpringsStainless Steel
Seals and SeatsNitrile/Viton
Coil Former45% Glass Filled PBT
Magnetic WireClass H Coated Copper



SOLENOID SPECIFICATIONS

 DC Solenoid Coil
Voltage Standard24
Voltage Tolerance±10%
Ambient Temperature-20 to +65°C
Duty Cycle100%
Degree of ProtectionIP65
Electrical ConnectionJunction Box with M20 Conduit Entry
Power Consumption0.4W or 0.27W
Pressure Range0 – 10 bar
Resistance370 Ohms or 2100 Ohms
Inductance (Apparent)Zero
CapacitanceZero



🌐 Pneumatic Solenoid Valves: Precision Airflow Control for Critical Processes

What Are Pneumatic Solenoid Valves?

Pneumatic solenoid valves are electromechanically operated devices that control the flow of compressed air in automation systems. By converting electrical signals into mechanical movement, these valves open or close air pathways, enabling precise control of pneumatic actuators, cylinders, and tools.

🔧 Key Uses of Pneumatic Solenoid Valves

These valves are essential in systems where compressed air is used to power motion or control:

Actuator Control
Direct airflow to pneumatic cylinders and actuators for linear or rotary motion.

Tool Automation
Operate air-powered tools in manufacturing and assembly lines.

Air Logic Systems
Manage complex sequences in pneumatic control circuits.

Packaging Machinery
Control timing and movement in automated packaging lines.

Material Handling
Operate grippers, lifters, and conveyors in logistics and warehousing.

🏭 Industries That Rely on Pneumatic Solenoid Valves

Pneumatic solenoid valves are vital in industries where speed, reliability, and clean operation are critical:

Manufacturing & Assembly
Automate repetitive tasks with precision and speed.

Automotive
Control robotic arms and pneumatic presses in vehicle production.

Food & Beverage
Ensure hygienic, oil-free operation in packaging and bottling systems.

Pharmaceuticals
Enable sterile, contamination-free motion control in cleanroom environments.

Textile & Printing
Manage air-driven components in looms, presses, and cutters.

⚙️ Why Pneumatic Solenoid Valves Matter

These valves offer several advantages:

Fast Switching
Rapid response times for high-speed automation.

Compact and Lightweight
Ideal for space-constrained systems.

Low Maintenance
Fewer moving parts mean longer service life and reduced downtime.

Safe and Clean
Use of air instead of fluids makes them ideal for sensitive environments.

📈 Enhancing Process Control with Pneumatics

By integrating pneumatic solenoid valves into control systems, industries can:

  • Boost productivity through faster cycle times
  • Improve safety with reliable air shut-off and control
  • Reduce energy consumption with efficient air management
  • Enable remote and automated control via PLCs and sensors
