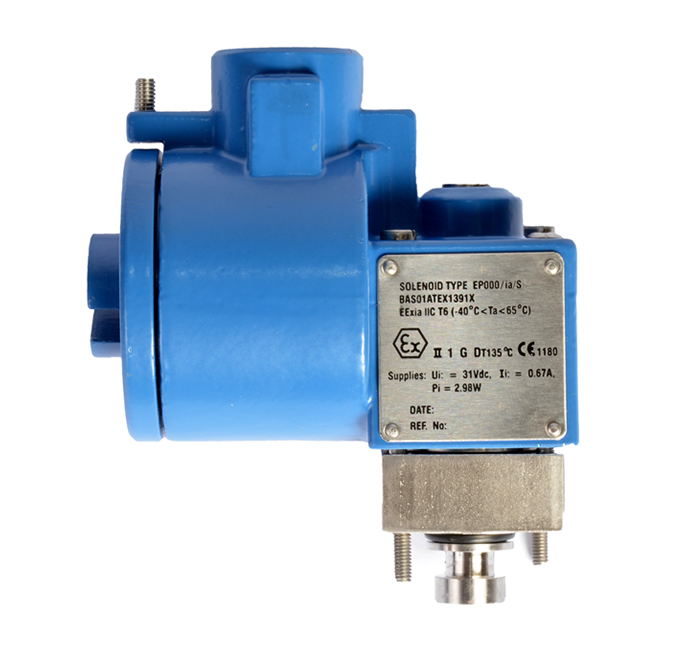

Cat 1 GD: Ex ia IIC T6: IP66 Stainless Steel Housed Terminal Box ATEX Cat 1 compatiable for hazardous areas. CNOMO interface available in various materials.
Datasheet
- Intrinsically safe coil assembly suitable for Zones 0, 1 and 2, manufactured in accordance with the requirements of the European harmonised standards EN/IEC60079-0 and EN/IEC60079-11.
- Covered by Certificates CML17ATEX2046X & IECEx CML17.0030X.
FEATURES
- PG.9 cable gland (cable diameter 6 – 8mm)
- Plug connector DIN 43650 – Form A / ISO 4400
- Protection class IP65 according to EN 60529
- Continuously rated
- Maximum permitted voltage variation ±10%
- Maximum Ambient Temperature +65°C
- Low power consumption
- Operates with a wide range of barriers and galvanic isolators
MATERIAL SPECIFICATIONS
| STANDARD | |
| Coil Case | Zinc Alloy Epoxy Powder Coated |
| Plug Connector | Polyamide +30% Glass Filled |
| Armature and Fixed Pole Piece | Magnetic Stainless Steel |
| Springs | Stainless Steel |
| Seals and Seats | Nitrile/Viton |
| Coil Former | 45% Glass Filled PBT |
| Magnetic Wire | Class H Coated Copper |
SOLENOID SPECIFICATIONS
| DC Solenoid Coil | |
| Voltage Standard | 24 |
| Voltage Tolerance | ±10% |
| Ambient Temperature | -20 to +65°C |
| Duty Cycle | 100% |
| Degree of Protection | IP65 |
| Electrical Connection | PG.9 Cable Gland |
| Power Consumption | 0.4W or 0.27W |
| Pressure Range | 0 – 10 bar |
| Resistance | 370 Ohms or 2100 Ohms |
| Inductance (Apparent) | Zero |
| Capacitance | Zero |
+
Cat 1 GD: Ex ia IIC T6: IP66 Stainless Steel Housed Terminal Box
