E45 - 1/2", BSP/NPT, Remote Mount, 5/2 or 5/3, Internal or External Pilot, Single or Dual Solenoid Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
- 5 port 2 position, pilot operated solenoid valve.
- 5 port 3 position, spring centering pilot operated solenoid valve.

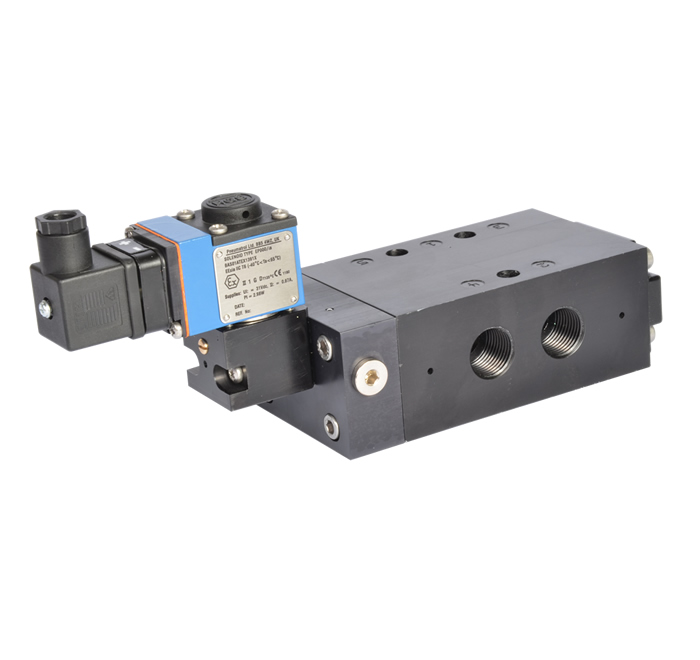

- Valve is illustrated with an Exia plug & socket coil.
- Body material available in aluminium (standard), Stainless Steel, and brass.
- Seal kit available – VSK501
FEATURES
- Internal or external pilot air connection
- Interchangeable CNOMO interface coils, including various hazardous area options
- 5/2 – Single coil spring return function or double coil stay put function
- 5/3 – All ports open or all ports closed in centre position
- Convenient fixing holes to enable bracket mounting
- Pilot exhaust dust caps fitted as standard
- SIL 2 Capable (De-energise to trip @ HFT=0) SIL 3 Capable (De-energise to trip @ HFT=1) (5/2 Solenoid/Spring Function Only)
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body and End Caps | Black Anodised Aluminium (Dural) |
| Spool | Hard Anodised Aluminium PTFE Impregnated |
| Jet | Brass |
| Spacers | Glass Filled Acetal |
| Seals | Nitrile |
| Spring | Music Wire |
VALVE SPECIFICATIONS
| Standard | |
| Port Connection Size | 1/2” BSP |
| Working Pressure Internal Pilot Version | 3 to 10 bar |
| Working Pressure External Pilot Version | 3 to 10 bar |
| Minimum External Pilot Pressure | 3 bar |
| Cv Factor | 3.5 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 3534 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
