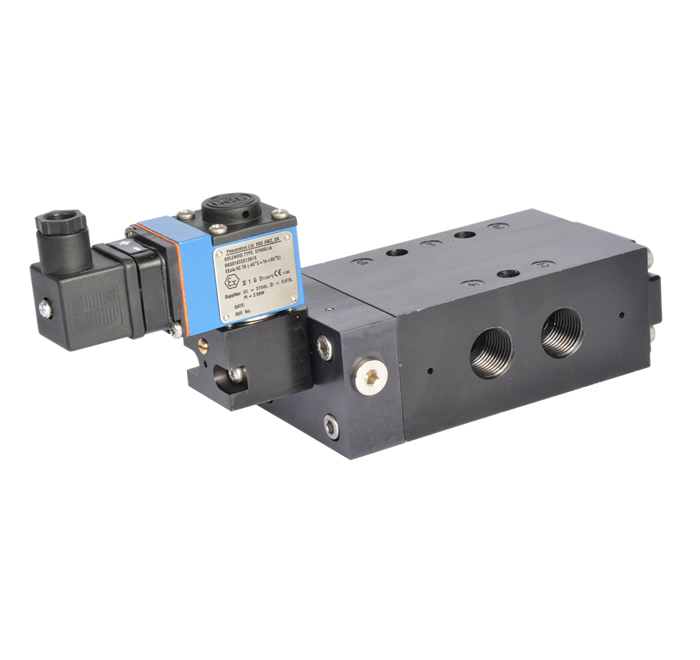

E45 - 1/2", BSP/NPT, Remote Mount, 5/2 or 5/3, Internal or External Pilot, Single or Dual Solenoid Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass

E45 Series – Remote Mounted 5/2 & 5/3 Solenoid Valve

Product Overview

The E45 Series is a pilot-operated pneumatic solenoid valve designed for remote-mounted installation in pneumatic automation systems.

Available in both 5/2 and 5/3 configurations, the valve supports internal or external pilot operation and can be supplied with either single solenoid spring-return or dual solenoid stay-put actuation.

Manufacturer: ROSS Pneumatrol
Product Series: E45
Valve Type: Pilot Operated Solenoid Valve
Valve Functions: 5/2 or 5/3
Mounting Style: Remote Mounted
Pilot Options: Internal or External Pilot
Actuation Options: Single Solenoid or Dual Solenoid

Key Features

• Remote-mounted valve configuration
• 5/2 and 5/3 directional control functions
• Internal or external pilot operation
• Single solenoid spring-return option
• Dual solenoid stay-put option
• Suitable for controlling double-acting cylinders and actuators
• Compact and durable industrial design
• Compatible with safe area and hazardous area solenoid operators
• Engineered for demanding industrial environments

Applications

The E45 Series is suitable for:

• Pneumatic actuator control
• Process automation systems
• Industrial machinery
• Packaging equipment
• Manufacturing automation
• Oil and gas installations
• Chemical processing facilities
• Power generation and utility systems

Product Benefits

The remote-mounted design provides flexibility in system layout, allowing the valve to be installed independently from the controlled actuator and simplifying both installation and maintenance.

The choice of 5/2 or 5/3 valve functionality allows engineers to tailor pneumatic control strategies to suit application requirements, including directional control and centre-position operating modes.

Internal and external pilot options provide flexibility when designing systems operating at different pressures, while single and dual solenoid configurations support both fail-safe and position-holding control philosophies.

Available Options

The E45 Series can be configured with:

• 5/2 valve operation
• 5/3 valve operation
• Internal pilot operation
• External pilot operation
• Single solenoid spring-return actuation
• Dual solenoid stay-put actuation
• BSP or NPT port connections
• Aluminium body construction
• Brass body construction
• Stainless steel body construction
• Safe area coil options
• Hazardous area approved operators including ATEX, IECEx, UKEX, FM/CSA and CCCEx variants

Industries Served

• Oil & Gas
• Chemical Processing
• Process Industry
• Energy & Utilities
• Rail Infrastructure
• Industrial Manufacturing
• Automation & Control Systems
• OEM Equipment Manufacturers

Important Notes

• Pilot pressure requirements should be verified during system design.
• The correct valve function should be selected according to actuator type and control requirements.
• Hazardous area approvals depend on the selected solenoid operator configuration.
• Electrical, pneumatic and environmental specifications should be reviewed before installation.
• Product options vary depending on body material and coil selection.
