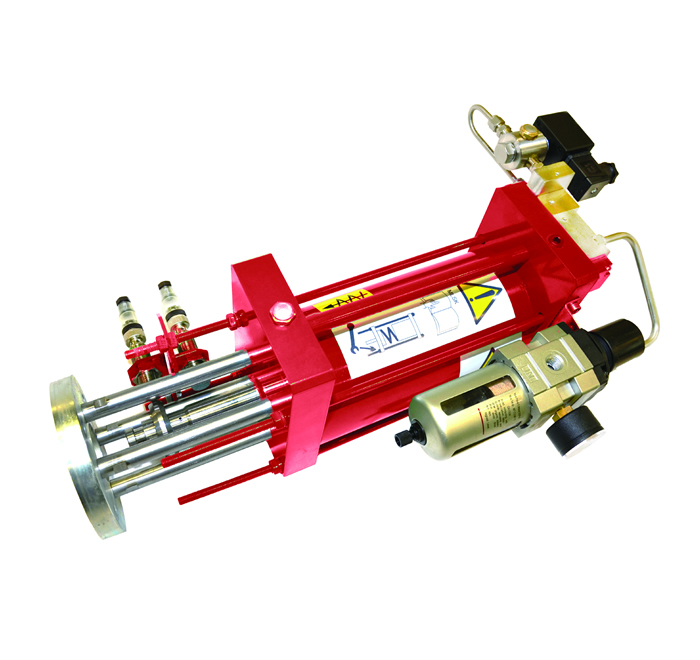

Linear Valve Actuators Linear Valve Actuators

FEATURES

• Double acting and spring return
• Spring to open or close
• 100mm (4″) to 1066mm (42″) diameters
• Pneumatic forces to 300000 lbf (1300 kN)
• Spring forces to 700000 lbf (3000 kN)
• Wide operating temperature range
• Material options: mild steel, aluminium and stainless steel
• Designed specifically for bespoke customer applications
• Double and triple pistons available for valve actuation in restricted areas

Pneumatic Linear Valve Actuators for Critical Process Applications

ROSS Pneumatrol designs and manufactures high-performance pneumatic linear valve actuators for demanding process control and safety-critical applications worldwide. Engineered to operate rising stem valves including gate valves, globe valves, knife gate valves and rising stem ball valves, our actuators deliver reliable, precise and repeatable valve operation in the most challenging industrial environments. [pneumatrol.com]

With more than 30 years of experience in valve automation technology, ROSS Pneumatrol supplies bespoke actuator solutions to leading valve manufacturers, EPC contractors, oil and gas operators, power generation facilities and petrochemical companies around the world. Our actuator systems are designed to provide long service life, low maintenance requirements and dependable operation where failure is not an option.

Engineered Linear Valve Actuation Solutions

Linear valve actuators play a critical role in the safe and efficient operation of industrial process systems. Designed to convert pneumatic energy into linear mechanical movement, these actuators provide the force required to accurately operate rising stem valves used throughout the process, energy and infrastructure sectors. [pneumatrol.com]

ROSS Pneumatrol linear actuators are engineered specifically for customer applications, ensuring optimum performance regardless of operating conditions. Every actuator is designed to meet exact valve, pressure, safety and environmental requirements while maintaining maximum reliability and operational efficiency. [pneumatrol.com]

Suitable for a Wide Range of Valve Types

Our linear valve actuators are designed to operate numerous valve configurations used within modern process plants and industrial facilities, including:

• Gate valves
• Knife gate valves
• Globe valves
• Rising stem ball valves
• Emergency shutdown valves
• Turbine bypass valves
• Bleed steam check valves
• Gas compressor anti-surge valves

These solutions are widely used where precise valve positioning, high operating forces and dependable emergency operation are required. [pneumatrol.com]

Designed for Safety-Critical Applications

ROSS Pneumatrol has extensive experience supplying valve actuators for some of the most demanding applications within the energy and process sectors. Many installations require reliable operation during emergency events, plant shutdown conditions or critical process upsets. [pneumatrol.com]

Our actuator systems are commonly specified for:

• Emergency shutdown (ESD) systems
• Compressor protection systems
• Steam turbine control systems
• Process isolation valves
• Power generation facilities
• Oil and gas production plants
• Petrochemical processing facilities
• Industrial infrastructure projects

The robust construction and proven design of our actuators ensure reliable operation even in harsh operational environments. [pneumatrol.com]

Bespoke Actuator Engineering

Unlike many standard off-the-shelf actuator suppliers, ROSS Pneumatrol specialises in custom-engineered solutions. Each actuator can be designed around the exact performance requirements of the valve and application. [pneumatrol.com]

Available options include:

• Double-acting actuators
• Spring return actuators
• Spring-to-open configurations
• Spring-to-close configurations
• Double piston designs
• Triple piston designs
• High-force actuator packages
• Extended temperature capability
• Stainless steel construction options

This flexibility allows engineers to obtain the optimum balance of operating force, fail-safe functionality, installation space and lifecycle performance. [pneumatrol.com]

High Force Output for Demanding Valves

ROSS Pneumatrol linear actuators are capable of delivering substantial operating forces for large and difficult-to-operate valves. Available actuator sizes range from 100 mm (4") to 1066 mm (42") diameter with pneumatic forces up to 300,000 lbf (1300 kN) and spring forces up to 700,000 lbf (3000 kN). [pneumatrol.com]

These capabilities make them suitable for high-pressure and severe-service valves where reliable operation is essential for plant safety and productivity. [pneumatrol.com]

Comprehensive Actuation and Control Packages

To provide complete valve automation solutions, ROSS Pneumatrol offers a wide range of ancillary equipment and accessories that can be integrated into the actuator assembly. Available options include:

• Mechanical manual overrides
• Handwheel operators
• Valve positioners
• Position indicators
• Limit switches
• Proximity sensors
• Junction boxes
• Mounting brackets and bridgeworks
• Interconnection hardware
• Bespoke control system integration

Complete actuator and control packages simplify installation and provide customers with a fully engineered solution from a single supplier. [pneumatrol.com]

Why Choose ROSS Pneumatrol Linear Valve Actuators?

With decades of experience in pneumatic actuation and process valve automation, ROSS Pneumatrol has established a reputation for delivering reliable, application-specific solutions for some of the world's most demanding industries. Our combination of engineering expertise, bespoke design capability and proven actuator technology enables customers to achieve safe, dependable and efficient valve operation throughout the lifecycle of their assets. [pneumatrol.com]

ANCILLARIES

• Interconnection mountings
• Bridgeworks and connectors
• Mechanical – manual overrides with hand wheels
• Limit-switches, sensors and junction boxes
• Positioners, position indicators and pointers
• Customer required specifics
