E23 2oo2 Modular Redundant Control Sytems is used for high availability & reliability applications Both solenoids are energised at the same time for increased redundancy measures. Compatiable with all hazardous area solenoids.

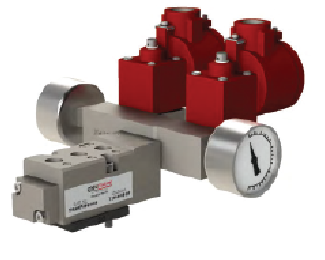

Actual product may differ from above image. Product details should be verified before purchase.

Pneumatrol Modular Redundant Control System (MRCS) is operated through a 1/4″ remote mount 3/2 pilot operated valve with redundant solenoid module assembly, able to provide high flow & low power capabilities
2oo2 Modular Redundant Control System is used for high availability & reliability applications
Both solenoids are energised at the same time, if signal is lost to one of the two solenoids the main control valve / actuator will remain in its operating position
Both solenoids must be de-energised in order to return the main control valve / actuator to its non-operating position
The redundant solenoids module can be fitted to any of Pneumatrol’s standard 3/2 or 5/2 solenoid spring control valves which utilise the CNOMO solenoid interface

FEATURES

External or internal pilot air connection
Dual solenoid / spring return function
Pilot exhaust dust cap fitted as standard
Interchangeable CNOMO interface
Full range of hazardous & safe area solenoids
ATEX, IECEx, GOST CU TR and NEPSI are all available
Body material available in aluminium (standard) & 316 stainless steel
Low temperature & high temperature seals are available on request
Indication ports (standard) with plugs & pressure gauges available as an option, also compatible with pressure switches
Also known as Redundant Valve Manifold (RVM)

MATERIAL SPECIFICATIONS

	STANDARD	Stainless Steel
Body and End Caps	Black Anodised Aluminium (Dural)	316 Stainless Steel
Spool	Hard Anodised Aluminium PTFE Impregnated	303 Stainless Steel
Spacers	Glass Filled Acetal	Glass Filled Acetal
Seals	Nitrile (Alternative Seals Available)	Nitrile (Alternative Seals Available)
Spring	Music Wire	Music Wire
Pressure Gauge	Mild Steel (0-10 Bar) 50mm diameter	304 Stainless Steel (0-10 Bar) 50mm diameter

VALVE SPECIFICATIONS

	STANDARD
Port Connection Size	1/4″ BSP
Working Pressure Internal Pilot Version	3 to 10 bar
Working Pressure External Pilot Version	3 to 10 bar
Minimum External Pilot Pressure	3 bar
Cv Factor	1.2
Flow Rate (at 6 bar with 1 bar pressure drop)	1246 l/min
Maximum Ambient Temperature	+80°C
Minimum Working Temperature	-20°C

23 2oo2 Modular Redundant Control System

Product Overview

The ROSS Pneumatrol E23 2oo2 Modular Redundant Control System is a high-availability pneumatic control solution based on the proven E23 valve platform.

Designed for critical valve automation applications, the system incorporates a modular redundant architecture that helps improve operational reliability and supports continuous process operation in demanding industrial environments.

Manufacturer: ROSS Pneumatrol
Product Type: Modular Redundant Control System
Valve Platform: E23 Series
Voting Architecture: 2oo2 (Two Out of Two)
Application: High Availability and Reliability Systems

Understanding 2oo2 Architecture

A Two Out of Two (2oo2) architecture requires both independent control channels to agree before a control action is initiated.

This type of configuration is commonly selected where:

High process availability is required
Operational continuity is critical
System redundancy improves reliability
Valve automation must remain dependable
Process interruptions must be minimised

The redundant arrangement helps enhance control integrity while supporting stable system operation.

Key Features

Proven E23 valve platform
2oo2 redundant architecture
High availability system design
Enhanced operational reliability
Modular and scalable construction
Suitable for critical valve automation
Supports continuous process operation
Simplified maintenance and servicing
Robust pneumatic control technology

Applications

The E23 2oo2 Modular Redundant Control System is suitable for:

Emergency Shutdown (ESD) systems
Critical process valve control
Safety Instrumented Systems (SIS)
Automated isolation valves
Process automation systems
Oil and gas installations
Chemical and petrochemical plants
Energy generation facilities
Utility infrastructure

Product Benefits

Increased Reliability

Redundant pneumatic control channels help improve overall system reliability and reduce the impact of individual component failures.

Enhanced Process Availability

The system supports applications where plant uptime and production continuity are critical operational requirements.

Modular Configuration

A modular architecture enables easier maintenance, simplified installation and future system expansion if required.

Improved Operational Resilience

The redundant design provides an additional level of security for critical actuator control and process valve automation.

Proven Pneumatic Technology

Built upon established Pneumatrol valve technology, the system delivers dependable long-term performance in demanding industrial environments.

Typical Installations

The E23 2oo2 system is commonly used within:

Emergency shutdown valve assemblies
Refineries and petrochemical plants
Gas processing facilities
Critical utility systems
Pipeline control applications
Process isolation systems
Power generation facilities
Industrial process plants

Industries Served

Oil & Gas
Petrochemical Processing
Chemical Manufacturing
Energy & Utilities
Power Generation
Hydrogen Projects
Process Industry
Industrial Automation

Why Choose ROSS Pneumatrol?

ROSS Pneumatrol has extensive experience designing pneumatic valve control systems for hazardous area and safety-critical applications. Our redundant control solutions are developed to improve reliability, support process safety objectives and minimise plant downtime.

With decades of expertise in pneumatic automation and process valve control, ROSS Pneumatrol continues to provide innovative solutions trusted by operators worldwide.

Important Notes

System architecture should be selected as part of the overall process control and safety strategy.
Suitability should be determined following operational and reliability assessments.
Installation and maintenance should be completed in accordance with site procedures and engineering standards.
Final system performance depends upon the complete actuator, valve and control system configuration.

Download and Further Information

View the product page here:

View E23 2oo2 Modular Redundant Control System
