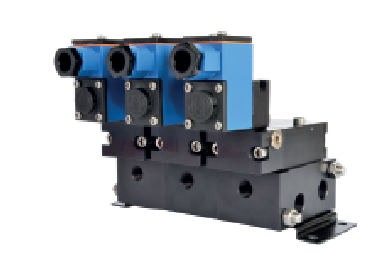

E13-V Series – Manifold Mounted 3/2 Solenoid Valve
Product Overview
The E13-V Series is a 3 port, 2 position pilot-operated pneumatic solenoid valve designed for manifold-mounted installations where multiple pneumatic control functions are required in a compact assembly.
The valve can be configured for either internal or external pilot operation, providing engineers with flexibility when designing pneumatic systems to suit varying pressure and control requirements.
Manufacturer: ROSS Pneumatrol
Product Series: E13-V
Valve Type: 3/2 Pilot Operated Solenoid Valve
Mounting Style: Manifold Mounted
Pilot Options: Internal or External Pilot
Key Features
- Manifold-mounted valve configuration
- 3/2 pilot-operated function
- Internal or external pilot operation
- Compact installation footprint
- Reduced pneumatic pipework and fittings
- Suitable for multi-valve assemblies
- Compatible with safe area and hazardous area solenoid operators
- Reliable operation in industrial environments
Applications
The E13-V Series is suitable for:
- Pneumatic automation systems
- Process control applications
- Manufacturing machinery
- OEM equipment
- Packaging systems
- Industrial control panels
- Rail automation applications
- General pneumatic installations
Product Benefits
The manifold-mounted design simplifies system assembly by allowing multiple valves to be installed on a common manifold, reducing installation time and minimising space requirements.
Internal and external pilot options provide additional flexibility when designing pneumatic systems, allowing the valve to be matched to different pressure conditions and performance requirements.
The compact design helps improve system organisation while simplifying maintenance and future expansion of pneumatic control systems.
Available Options
The E13-V Series can be configured with:
- Internal pilot operation
- External pilot operation
- BSP or NPT port connections
- Multiple manifold configurations
- Aluminium body construction
- Brass body construction
- Stainless steel body construction
- Safe area solenoid coils
- Hazardous area approved operators
- Multiple AC and DC voltage options
Industries Served
- Industrial Manufacturing
- Process Industry
- Energy & Utilities
- Rail Infrastructure
- Automation & Control Systems
- OEM Equipment Manufacturers
- Packaging Machinery
- General Industrial Applications
Why Choose ROSS Pneumatrol?
ROSS Pneumatrol has decades of experience designing and manufacturing pneumatic control solutions for industrial automation and safety-critical applications. Our manifold valve systems are engineered to provide dependable operation, ease of maintenance and long service life while helping customers simplify pneumatic system design and installation.
Important Notes
- Pilot pressure requirements should be verified during system design.
- Internal or external pilot configuration should be selected according to application requirements.
- Hazardous area approvals depend upon the selected solenoid operator.
- Electrical and pneumatic specifications should be reviewed before installation.
- Product options may vary according to valve body material and coil selection.
